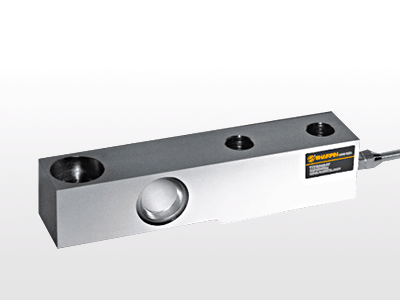

SBB
|
|
|
Main Technicaldata |
(Unit) |
Techinical quota |
| Rated Load |
t |
0.5,1,2,2.5 |
| Sensitivity |
mV/V |
2.0±0.002 |
| Total error |
%F.S |
±0.03 |
| Creep(30mins) |
%F.S |
±0.02 |
| Zero balance |
%F.S |
±1 |
| TCO |
%F.S/10℃ |
±0.02 |
| TC SPAN |
%F.S/10℃ |
±0.02 |
| Input resistance |
Ω |
380±10 |
| Output resistance |
Ω |
353±2 |
| Insulation resistance |
Ω |
≥5000M |
| Operating Temp Range |
℃ |
-30~+70 |
| Safe load limit |
%F.S |
120 |
| Lateral load limit |
%F.S |
150 |
| Recommend excitation |
V DC |
10~12 |
| Maximum excitation |
V DC |
15 |
| Protection Class |
IP68 |
| Material |
Alloy Steel/Stainless steel |
| 电Cable |
Dim:φ5.2；Ｌength：3m |
|
|
|
|
